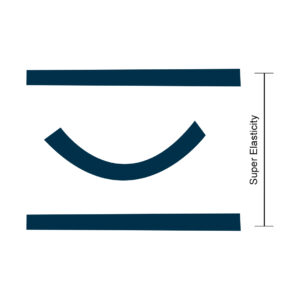

The SUPERELASTIC effect in Nitinol (nickel-titanium alloy) is a remarkable property that allows the material to undergo significant deformation under stress and then return to its original shape upon unloading, without the need for heating. This behavior is due to a reversible, stress-induced phase transformation between its austenite and martensite crystal structures.
Mechanism of the Super elastic Effect
1. High-Temperature Austenite Phase: – At temperatures above the austenite finish temperature (Af), Nitinol is in its austenite phase, characterized by a body-centered cubic (B2) crystal structure. In this phase, the material is relatively stable and ready to exhibit super elasticity.
2. Stress-Induced Martensite Phase: – When a mechanical stress is applied to Nitinol in the austenite phase, it can undergo a phase transformation to martensite, even though the temperature remains above Af. This stress-induced martensite has a different crystal structure (monoclinic) that allows the material to accommodate large strains (up to 8-10%) by reorienting its crystal lattice.
3. Unloading and Reversion to Austenite: – Upon removal of the applied stress, the martensite phase reverts back to the austenite phase, and the material returns to its original shape. This phase reversion is what enables the superelastic behavior.
Applications
The super-elastic effect in Nitinol is leveraged in a variety of applications where high elasticity and the ability to recover shape after significant deformation are crucial:
– Medical Devices: – Orthodontic Archwires: Super-elastic Nitinol wires are used in braces to apply consistent, gentle forces to teeth over time. – Stents: Nitinol stents can be compressed for insertion into blood vessels and then expand to support the vessel walls, adapting to the vessel shape due to their super-elastic properties.
– Eyeglass Frames: – Frames made from super-elastic Nitinol can endure twisting and bending, returning to their original shape without damage, providing durability and comfort.
– Sporting Goods: – Equipment like eyeglass frames, golf clubs, and other sporting goods use super-elastic Nitinol for its resilience and flexibility.
– Robotics and Actuators: – Super-elastic Nitinol components are used in robotic mechanisms and actuators where flexibility, durability, and precise movement are needed.
The super-elastic effect in Nitinol offers unique advantages, such as high strain recovery, durability, and energy absorption, making it an invaluable material in numerous high-performance applications.
