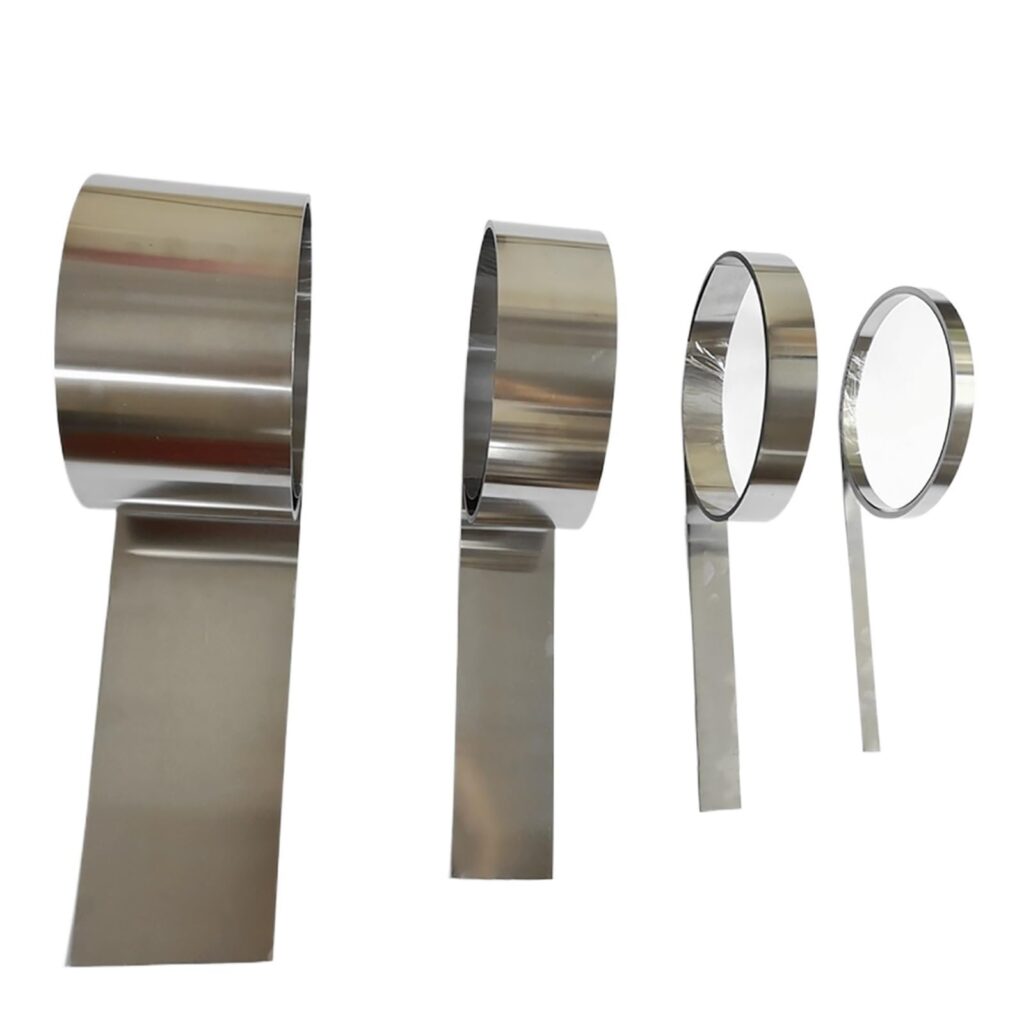

Sheet Dimensions
| Width | 300 mm Max (±2.0mm) |
| Thickness | 0.1 to 45 mm (±0.09mm to ± 0.20mm ) |
| Length | 1500 mm max ( ±2.0 mm ) |
NOTE :- Tighter Tolerance Available On Request.
Mechanical Properties
| Alloy code | UTS σ_b Mpa | Elongation δ% | UPS σ_load Mpa | Permanent Set After 6% Strain % | Active A_f °C |
| A | >=1300 | >=10 | >=480 | <0.5 | 10±7° C |
| B | >=1150 | >=10 | >=440 | <0.5 | 17±7° C |
| C | >=1000 | >=10 | >=400 | <0.5 | 25±5° C |
| D | >=950 | >=10 | >=300 | <0.5 | 35±5° C |
| E | >=550 | >=15 | >=200 | <0.5 | 35±8° C TO 110±8° C |
NOTE :- All Mechanical Testing Conducted at 22°C +/- 2°C
Surface condition
- Black surface oxidation
- Etched surface
- Electropolishing surface (EP)
- Grinding surface
- Mirror finish
