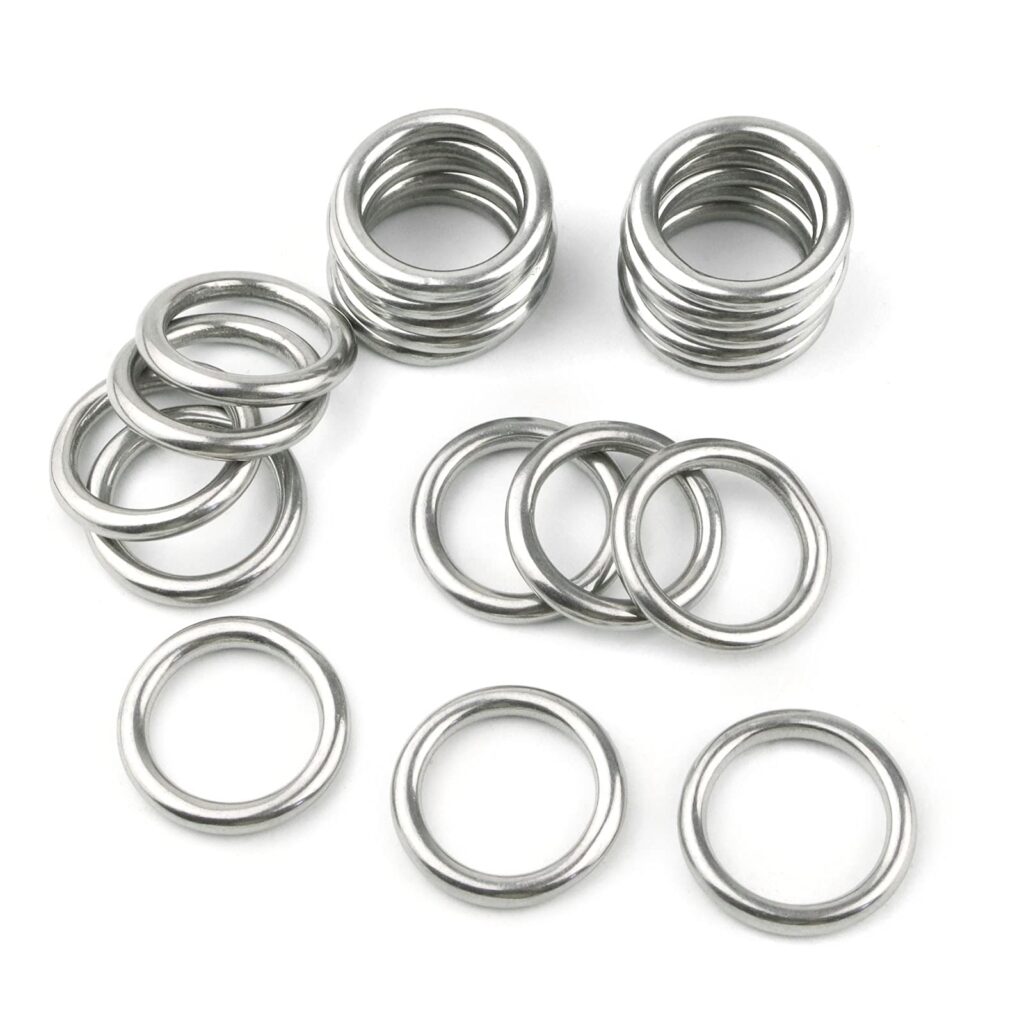

Nitinol Ring

A Nitinol ring is a small, flexible component made from the shape-memory alloy of nickel and titanium. It can change shape when exposed to heat, returning to a predetermined form, which is ideal for applications requiring precise mechanical movement. Nitinol rings are commonly used in medical devices, such as stents, where they expand to fit the shape of blood vessels. These rings also find use in actuators and robotics, providing reliable motion in response to temperature changes. The material’s biocompatibility makes it safe for implantation in the human body. Nitinol rings offer excellent fatigue resistance and durability. Their ability to function in extreme conditions further enhances their usefulness in a variety of industries.

Nitinol Ring Dimensions and Tolerances

Wire Diameter

Wire Diameter	Tolerance of the Thickness
0.010<T<0.100 mm	±0.020 mm
0.100≤T<4.000 mm	±0.100 mm

NOTE:- 1) Wire diameter can be customize as per requirement

RING Diameter

Ring Diameter	Tolerance of the Ring
0.5≤D≤ 2000 mm	±2.0 mm

NOTE :- 1) Ring diameter can be customize as per requirement
2) Tighter Tolerance Available On Request.

MECHANICAL PROPERTISE

Alloy Code	UTS σ_b Mpa	Elongation δ%	UPS σ_load Mpa	Permanent Set After 6% Strain %	Active A_f °C
E	>=550	>=15	>=200	<0.5	5±8° C TO 110±8° C

NOTE :- All Mechanical Testing Conducted at 22°C +/- 2°C

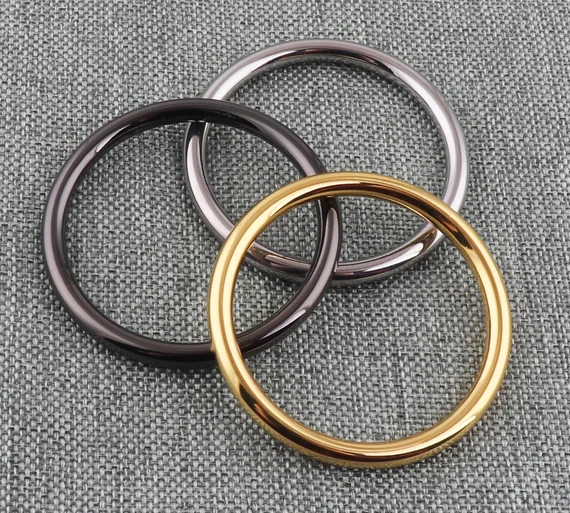

Surface condition

Black surface oxidation
Light oxidation (golden to brown)
Etched surface
Electropolishing surface (EP)
